E.P.C. (Energy Performance Certification)

relating to; The S.A.N.S. 1544 (2014) and the N.A.B.E.R.S. Australian (N.S.W.) Building Energy Saving Incentive Rating Scheme

and

the positive energy, cost-saving and staff productivity impact of “ROLLA-RAY” solar blinds on E.P.C. in corporate building precincts

Testimonial of the “ROLLA-RAY” Solar Blind installation at Nedbank Buildings DATED JULY 2022

The project entailed the installation of the transparent “ROLLA-RAY” solar blinds. The priority of this project was to ensure that:

1) Staff experience comfortable temperature levels in Summer and Winter, average 24 degrees Celsius.
2) Reducing operational cost on the Cooling HVAC Systems
3) Reduce electricity and water consumption and simultaneously save on the municipal bill.

The “ROLLA-RAY” blinds were manufactured and installed by Innovative Window Coverings C.C. and the installation was done at the following Nedbank building:

Nedbank 1 Breda Street , Paarl Building
A five storey North-facing building.

The north elevation received extreme heat via the windows for the whole day. The North face is also situated in a wind-shadow with the prevailing South Eastern- Summer wind having no effect on cooling the North facing facade. It became challenging to create comfortable temperature levels and the air conditioning system had to work extremely hard to try and create comfortable temperature levels on that side of the building during Summer. The operation of the air conditioning network resulted in the huge consumption of electricity and water and also a huge increase in cost. The average outside temperature during Summer was 40 degrees Celsius.

170 x “ROLLA-RAY” solar, heat rejecting, glare reducing, UV Filtering, height adjustable, "GREEN" P.E.T. solar blinds were manufactured and installed in all the windows that cover the north elevation of the building. Subsequent to the installation of the “ROLLA-RAY” blinds it become evident that we have less issues to create comfortable temperature levels, less concerns were logged at Help Desk, and the Municipal bills stabilized.

* The “ROLLA-RAY” solar blinds supplied in the installation 17 November 2011 are still in daily use today (July 2022) and as effective as when first installed.

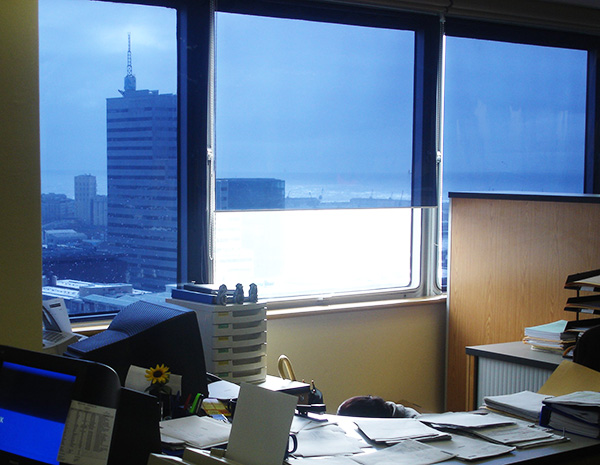

* During the daytime, staff had the option to raise and lower blinds as per their preference and eliminate PC glare, without any optical discomfort, eye strain or loss of outward view.

* The “ROLLA-RAY” solar blinds were professionally and discretely installed over a full weekend with no disruption to the staff and the working environment.

The “ROLLA-RAY” is a vital energy cost saving component in every building which requires zero management with maximum cost saving effects. It is therefore my personal and professional experience that I recommend use of the “ROLLA-RAY” as an indispensible "must have" in any Office Precinct with Staff comfort and productivity and drastic Cooling cost reduction as priorities.

Yours Sincerely
Mr. Charles XXXXX (retired)

It is my pleasure to attest thereto and confirm that; During my tenure as Facilities Manager at Nedbank Limited wherein the following events are recorded, I was completely satisfied with the Nedbank investment for the supply and fitment of the “ROLLA-RAY” solar blinds at the buildings I was responsible for.

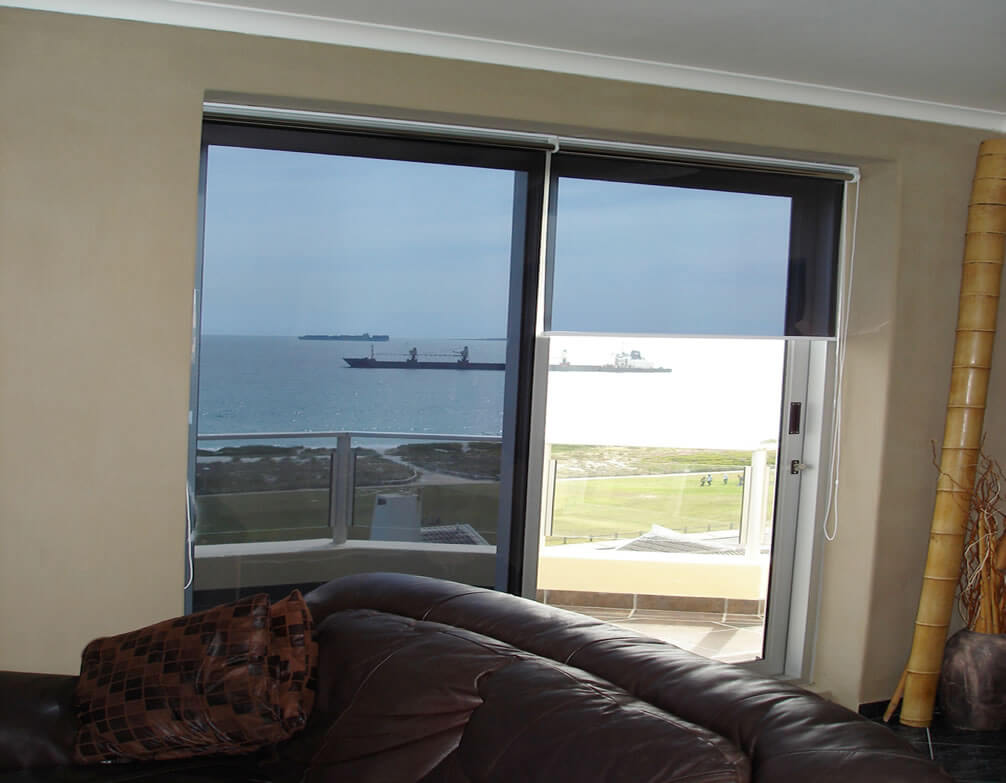

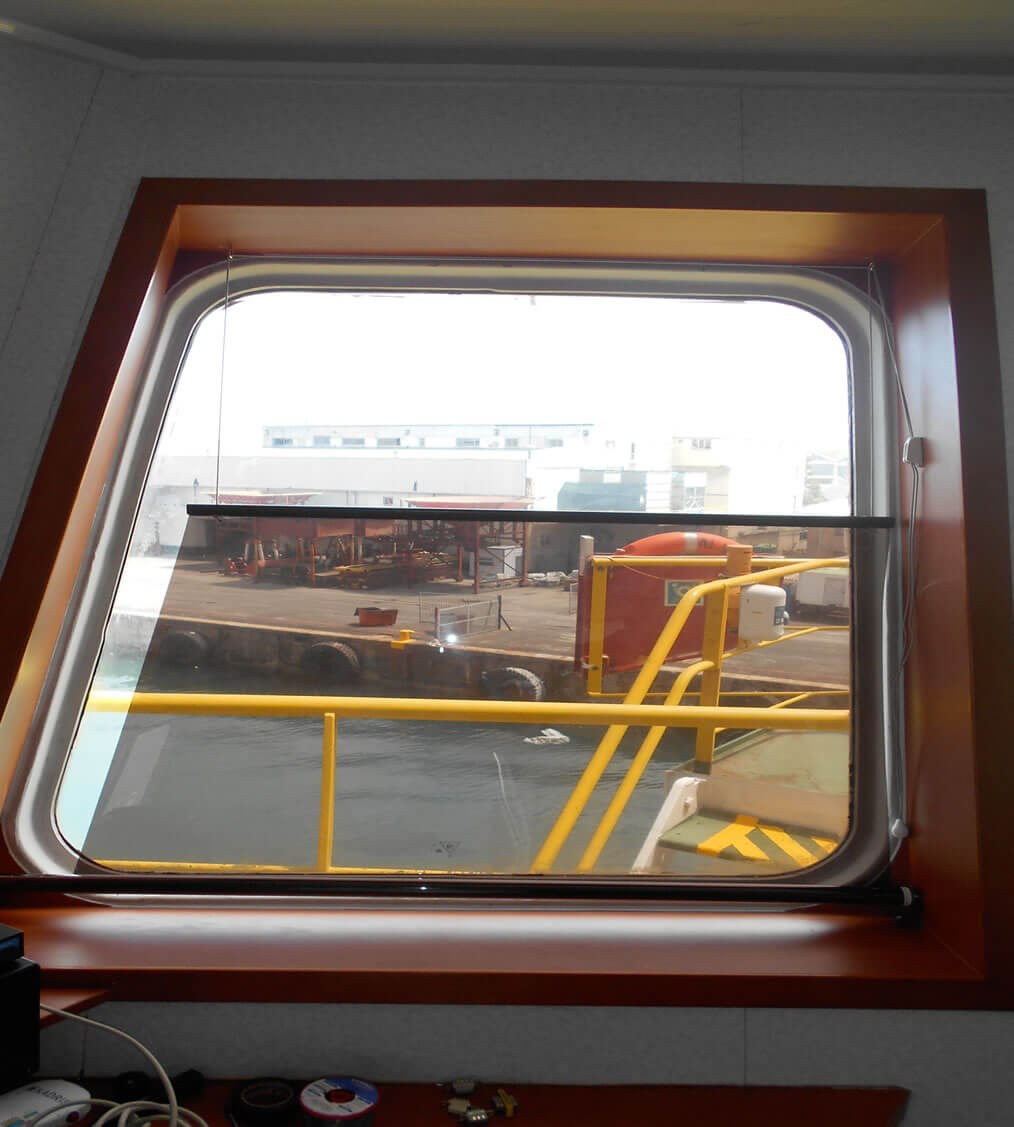

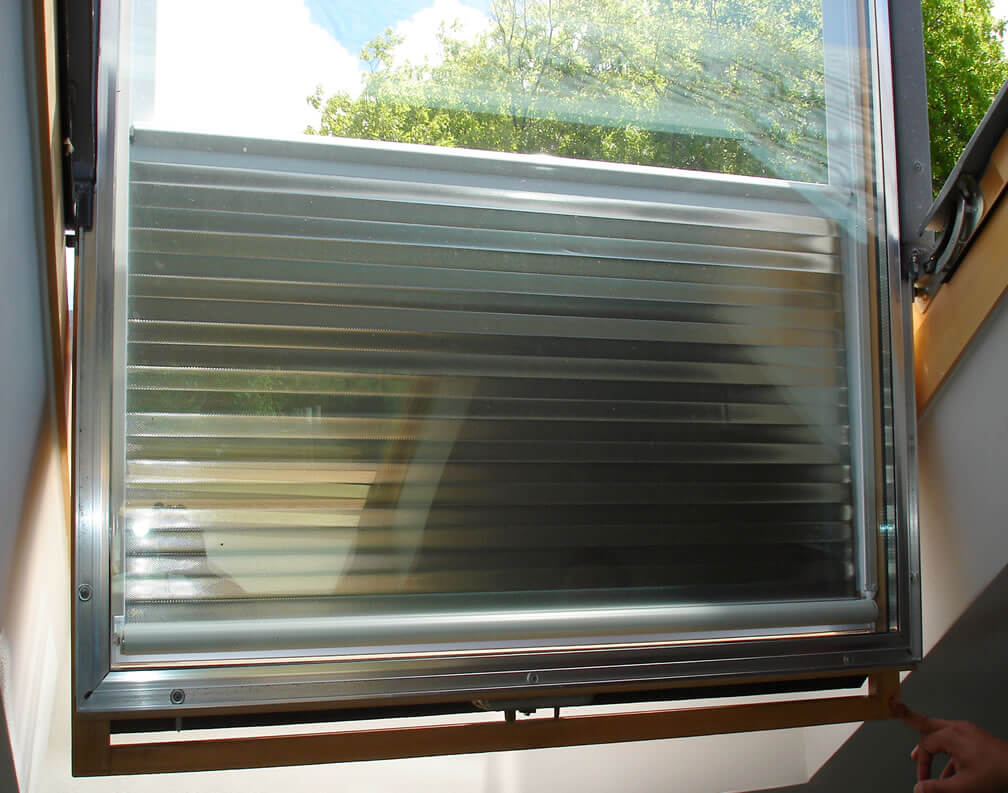

“ROLLA-RAY” shown above is height adjustable on demand permitting the User to adjust the incidental light (solar glare effect) and permeation of Winter Warmth thereby synchronising with the existing Seasonal atmospheric conditions to create a productive comfortable work space.

The transparent “ROLLA-RAY” solar roller blind; ...

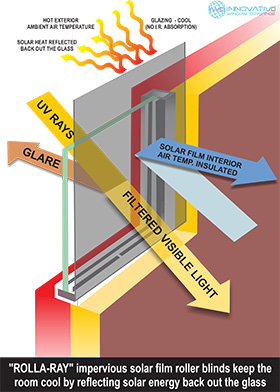

• Serves to EFFECTIVELY insulate the interior ambient air temperature from the incidental solar energy in Summer and retain the Winter warmth thereby reducing the dependency on maintaining heating and cooling
• Offers unrivalled energy saving benefits applicable to both R and U values (Winter AND Summer benefit)
• Greatly improves staff productivity by reducing eye-strain whilst simultaneously dramatically reducing the dependency on artificial heating and cooling
• Affords the User 100% visual outward clarity in direct sun - no loss of nor view distortion
• Non-static thus ideally situated in computer intensive workspaces unlike common dust-harbouring blinds
• Is slimline and unobtrusive by design & easily fitted behind existing window blinds
• Offers proven durability with constant use in harsh arid as well as humid climates
• Is supplied made to-measure or easily self-installed in new or retro-fitted Buildings.
• Is proven durable and highly effective since 1996
• Height adjustable on demand - glare free control
• Suitably installed behind all Glass varieties
• Is "GREEN" ... NO harmful to the environment-PVC used in the construction of the “ROLLA-RAY”

How the ROLLA-RAY E.P.C. cost-benefit applies;

Quantifiable Energy Saving achieved by installing the ROLLA-RAY solar blind - WINTER

An example of a site situation and given quantities;

WINDOW Known Factors;
(a) A building WINDOW with 10㎡ glass surface	A = 10 ㎡
(b) U-value of the windowpane (clear glass 4/12/4)	U = 2,4 W/(㎡*K)
(c) U-value of the blind	U = 1,7 W/(㎡*K)
(d) temperature outside	TA = - 10 ℃
(e) temperature inside	TI = + 20 ℃
(f) temperature difference	T = 30 K
Energy loss without ROLLA-RAY roller blind	Energy loss with drawn ROLLA-RAY roller blind
Energy loss: 10 ㎡ x 30 K x 2,4 W/(㎡*K) = 720 W	Energy loss: 10 ㎡ x 30 K x 1,7 W/(㎡*K) = 510 W

The energy saving using the “ROLLA-RAY” solar blind = 210 W per window size / period

CAPEX vs. SAVING (Example offered for indication purposes only)

• Window size: width 2.245m x height 1360m
• Film type: Reflective Grey film

Capex Roller Blind cost: ZAR 2 655,00 ( random value selected ) *

• Utility expectancy: 10 years
• Capex amortised over 10 yrs = ZAR 22,12 per month
• Electricity cost /kWh ZAR 0,14358 ( Standard Rate Large User Rate Cape Town 2022 )
• Winter Heating cost saving = 29,1666% OR ZAR 0,041877 /kWh PER WINDOW SIZE / HOUR USE ... THUS equates to ZAR 1 222,808 energy COST SAVING over 10 years for 8 business hour use per day (given all variables are satisfied ref. U/R-value calculation) * Values are subject to change and are supplied to indicate assessment on-Capex Return.

* Cost confirmation offered upon written enquiry.

“ROLLA-RAY” Solar Film (examples) specification used in Roller Blind construction;

“ROLLA-RAY” the UNRIVALLED performance Energy saving Staff Productivity enhancing durable and cost effective height adjustable applicable to ALL season roller blind is a "MUST HAVE" E.P.C. Certification - achieving component in every Corporate Precinct
